홈 > 제품 소개> 굴착기 부속품> 489-9456 4899456 Controller ECU for E330GC Excavator

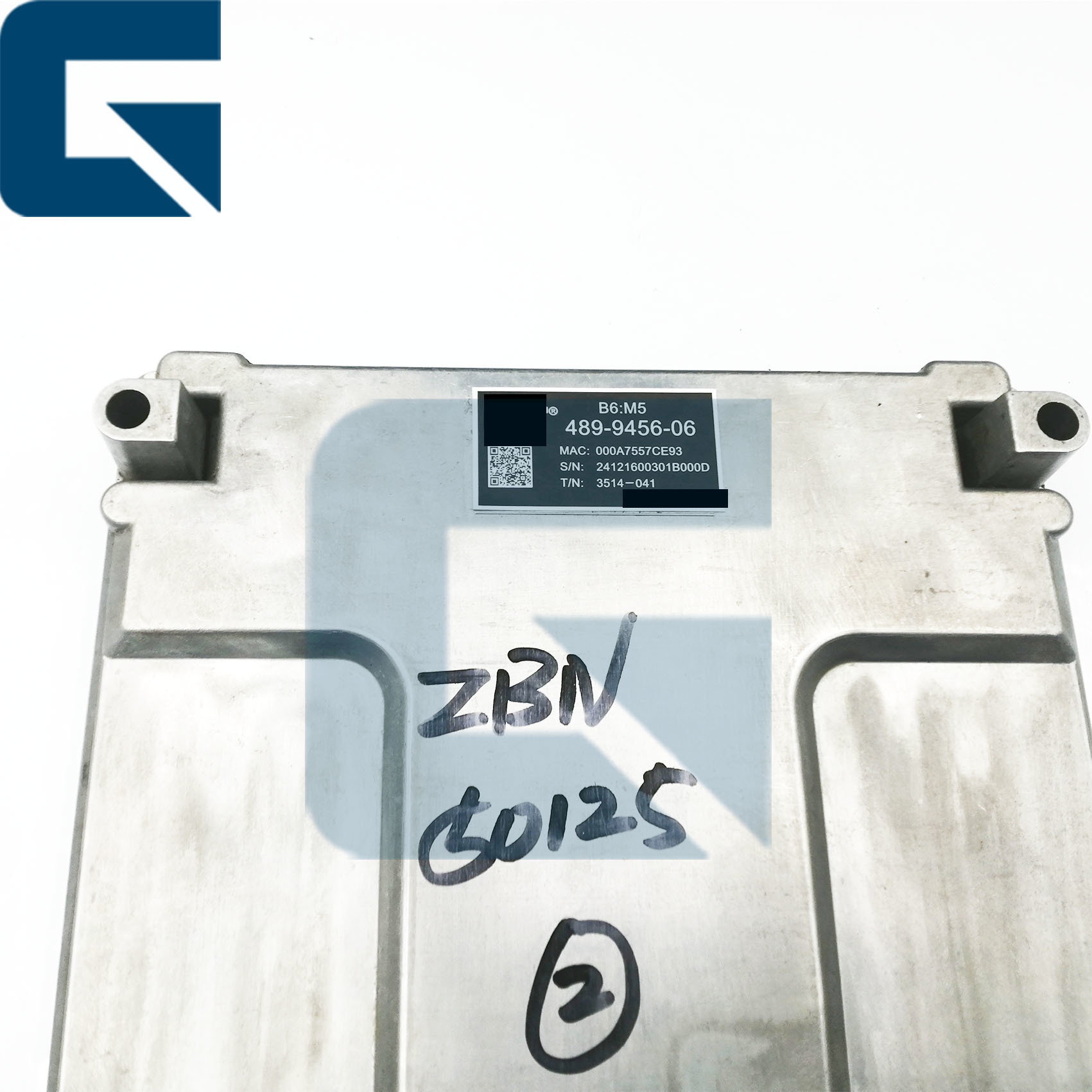

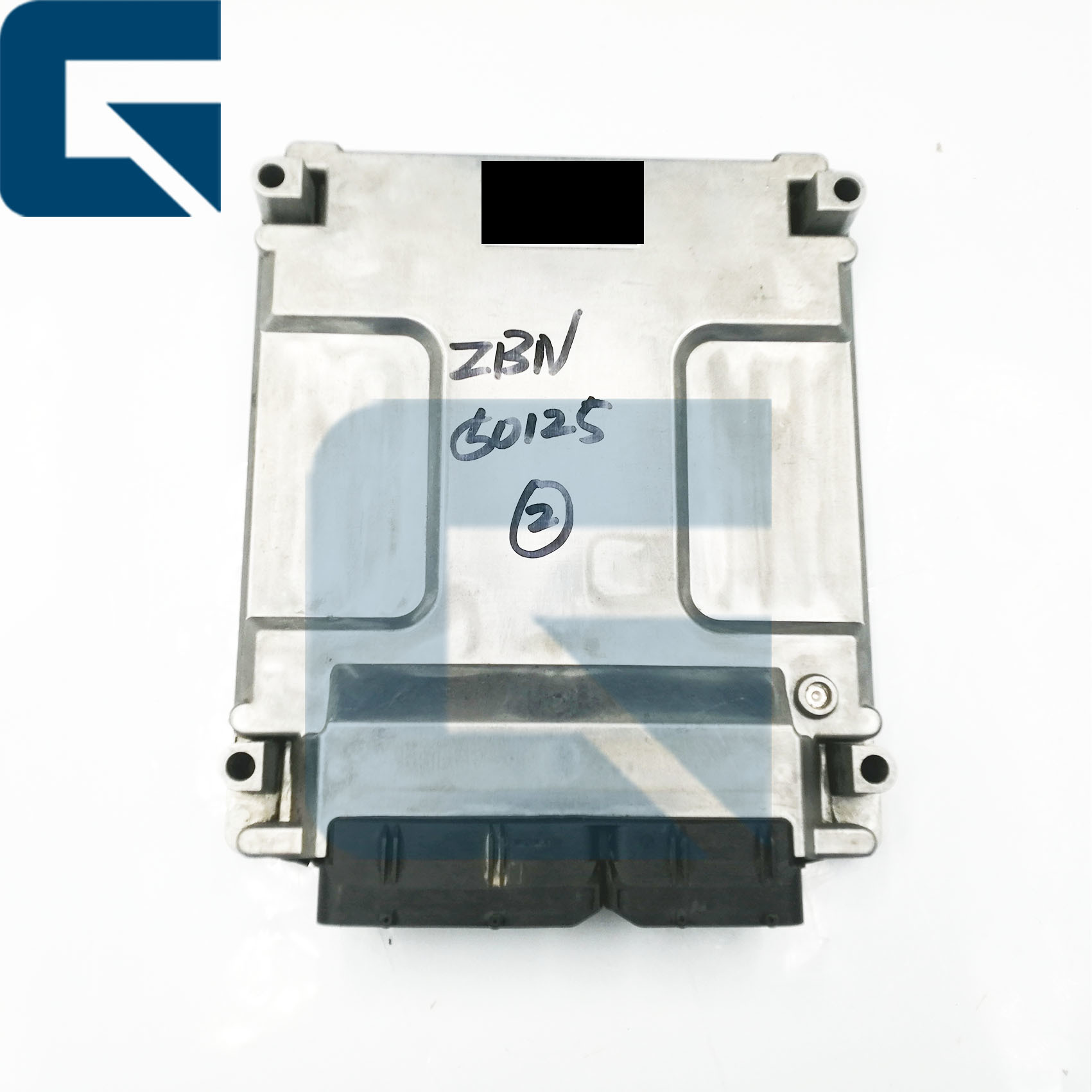

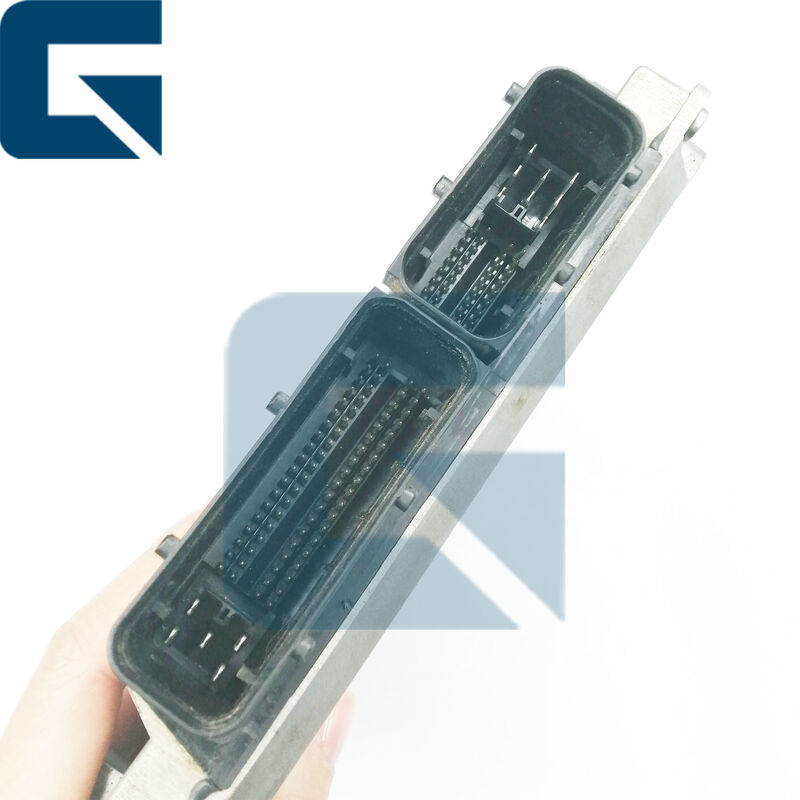

489-9456 4899456 Controller ECU for E330GC Excavator

489-9456 4899456 Controller ECU for E330GC Excavator
489-9456 4899456 Controller ECU for E330GC Excavator 489-9456 4899456 Controller ECU for E330GC Excavator 489-9456 4899456 Controller ECU for E330GC Excavator 489-9456 4899456 Controller ECU for E330GC Excavator
기본 정보
원래 장소: 중국
브랜드 이름: JIAJUE
모델 번호: E330GC
최소 주문 수량: 1
가격: Please send mail or WhatsApp
포장 세부 사항: 489-9456 4899456 E330GC 굴삭기용 컨트롤러 ECU는 고객 요구 사항에 따라 표준 수출 포장으로 포장됩니다.
배달 시간: 1 근무일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹,
공급 능력: 1000pcs/월
최고의 가격 지금 연락
상세 정보
부품 번호: 489-9456 MOQ: 1
강조하다:

E330GC excavator controller ECU

,

Excavator ECU controller 489-9456

,

4899456 excavator controller with warranty

제품 설명

489-9456 Controller ECU for E330GC Excavator
489-9456 4899456 Controller ECU for E330GC Excavator
Product Specifications
Product Name Controller
Part Number 489-9456
Brand Name JIAJUE
Model E330GC
Condition Brand New
Availability Rich Stock
Delivery Time Usually delivered within 1-3 days after payment
Approximate Weight 3KG
Size (per unit) 20cm x 30cm x 8cm
Delivery Methods DHL, FedEx, TNT, UPS
Shipment Dispatched within 24-48 hours
Payment Methods TT, Western Union, Credit Card, PayPal
Product Testing
489-9456 4899456 Controller ECU for E330GC Excavator 0
Related Products
489-9456 4899456 Controller ECU for E330GC Excavator 1
Frequently Asked Questions
Q1: How long does it take to install the ECM on machine?
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Q2: How to determine if the ECM is faulty and needs replacement?
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Q3: What's your payment method?
Our payment methods include T/T, L/C, PayPal, etc.
Q4: Do you have stock?
Rich stock available.
Q5: How can I know my order is already shipping?
When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
Customer Reviews
489-9456 4899456 Controller ECU for E330GC Excavator 2
Company Profile
489-9456 4899456 Controller ECU for E330GC Excavator 3
Exhibition
489-9456 4899456 Controller ECU for E330GC Excavator 4 489-9456 4899456 Controller ECU for E330GC Excavator 5
Factory Environment
489-9456 4899456 Controller ECU for E330GC Excavator 6
Packaging & Shipping
489-9456 4899456 Controller ECU for E330GC Excavator 7 489-9456 4899456 Controller ECU for E330GC Excavator 8
