홈 > 제품 소개> 디젤 엔진 연료 분사 장치> VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts

VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts

VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts
VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts
기본 정보
원래 장소: 중국
브랜드 이름: JIAJUE
모델 번호: D13K
최소 주문 수량: 1
가격: Please send mail or WhatsApp
포장 세부 사항: VOE24290494 24290494 D13K 엔진 부품용 디젤 연료 인젝터는 고객 요구 사항에 따라 표준 수출 포장으로 포장됩니다.
배달 시간: 1 근무일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹,
공급 능력: 1000pcs/월
최고의 가격 지금 연락
상세 정보
부품 번호: VOE24290494 MOQ: 1
강조하다:

D13K diesel fuel injector

,

VOE24290494 fuel injector

,

Diesel engine parts injector

제품 설명

VOE24290494 Diesel Fuel Injector for D13K Engine
High-performance diesel fuel injector specifically designed for D13K engine applications, ensuring optimal fuel delivery and engine performance.
Product Specifications
Product Name Fuel Injector
Part Number VOE24290494
Brand Name JIAJUE
Model D13K
Availability Rich Stock
Approximate Weight 2KG
Size (per unit) 20cm x 5cm x 8cm
Delivery Methods DHL FedEx TNT UPS
Warranty 3 months
Shipment Dispatched within 24-48 hours

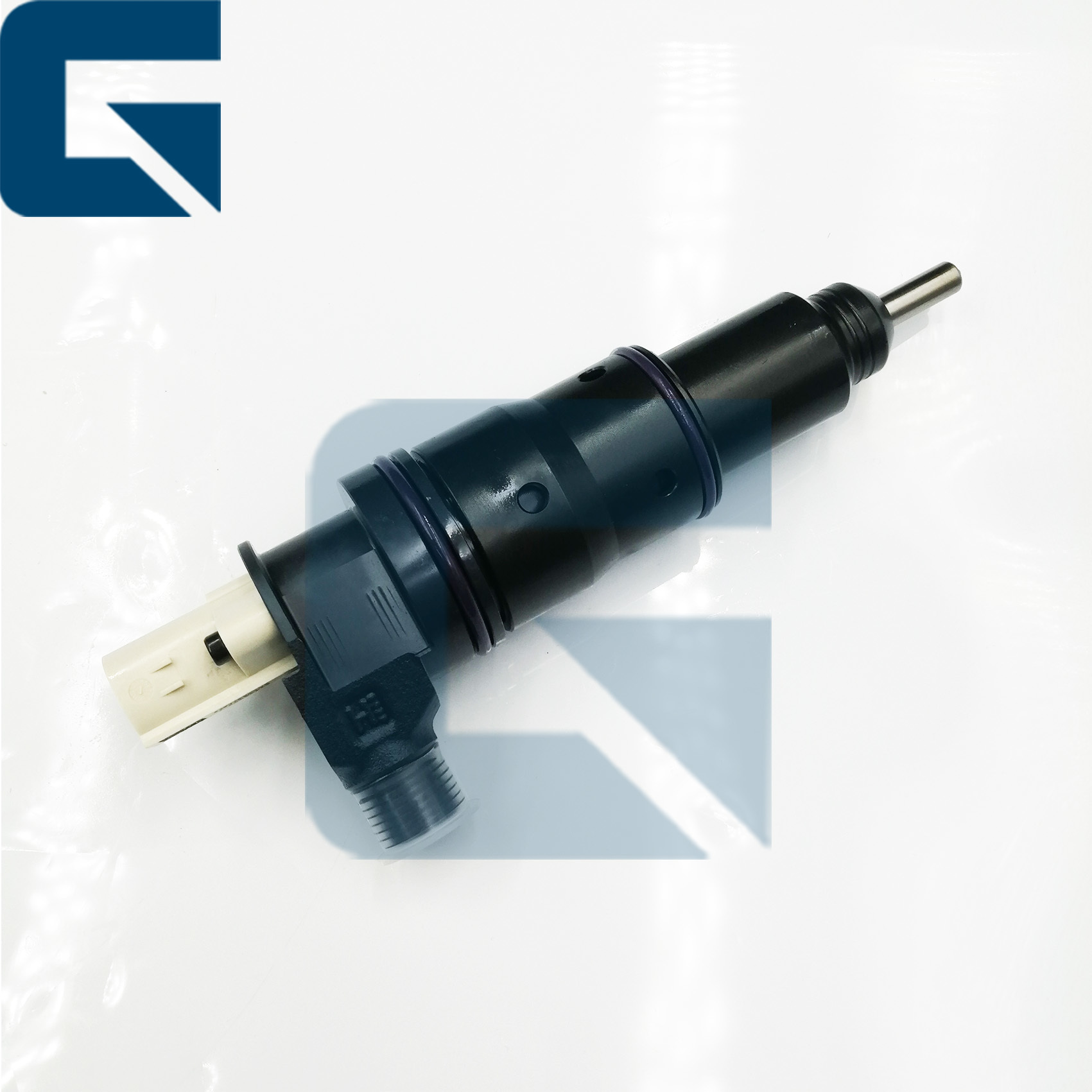

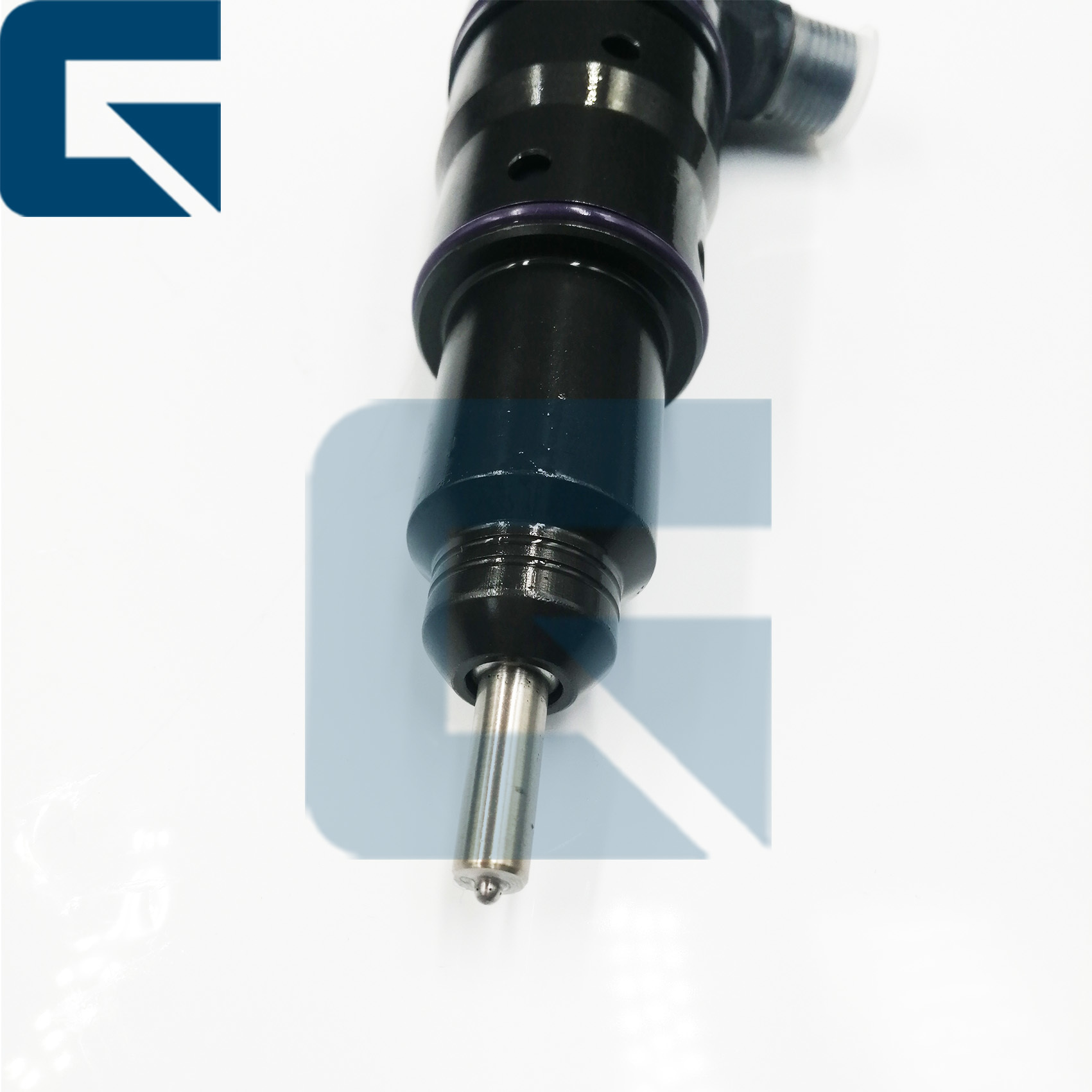

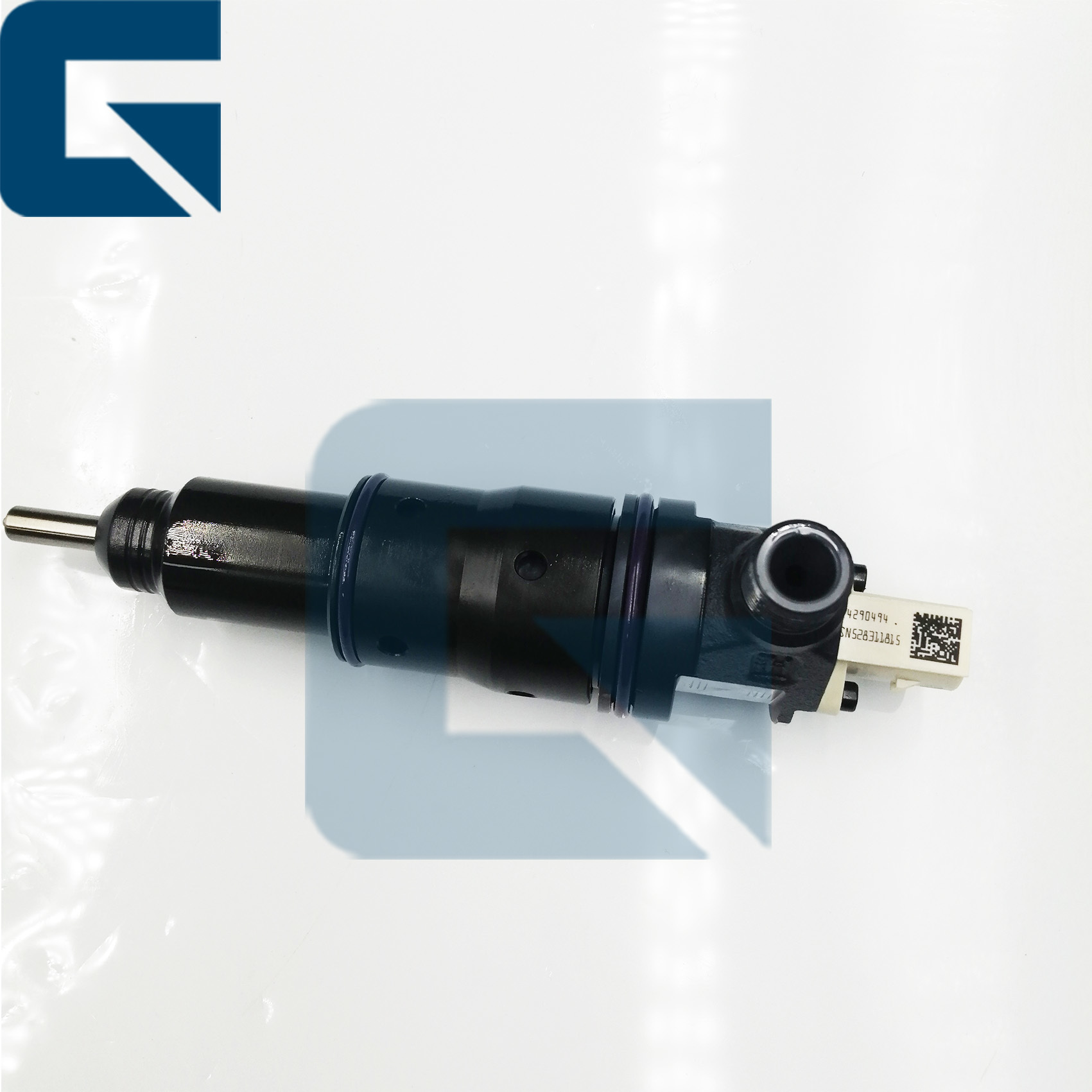

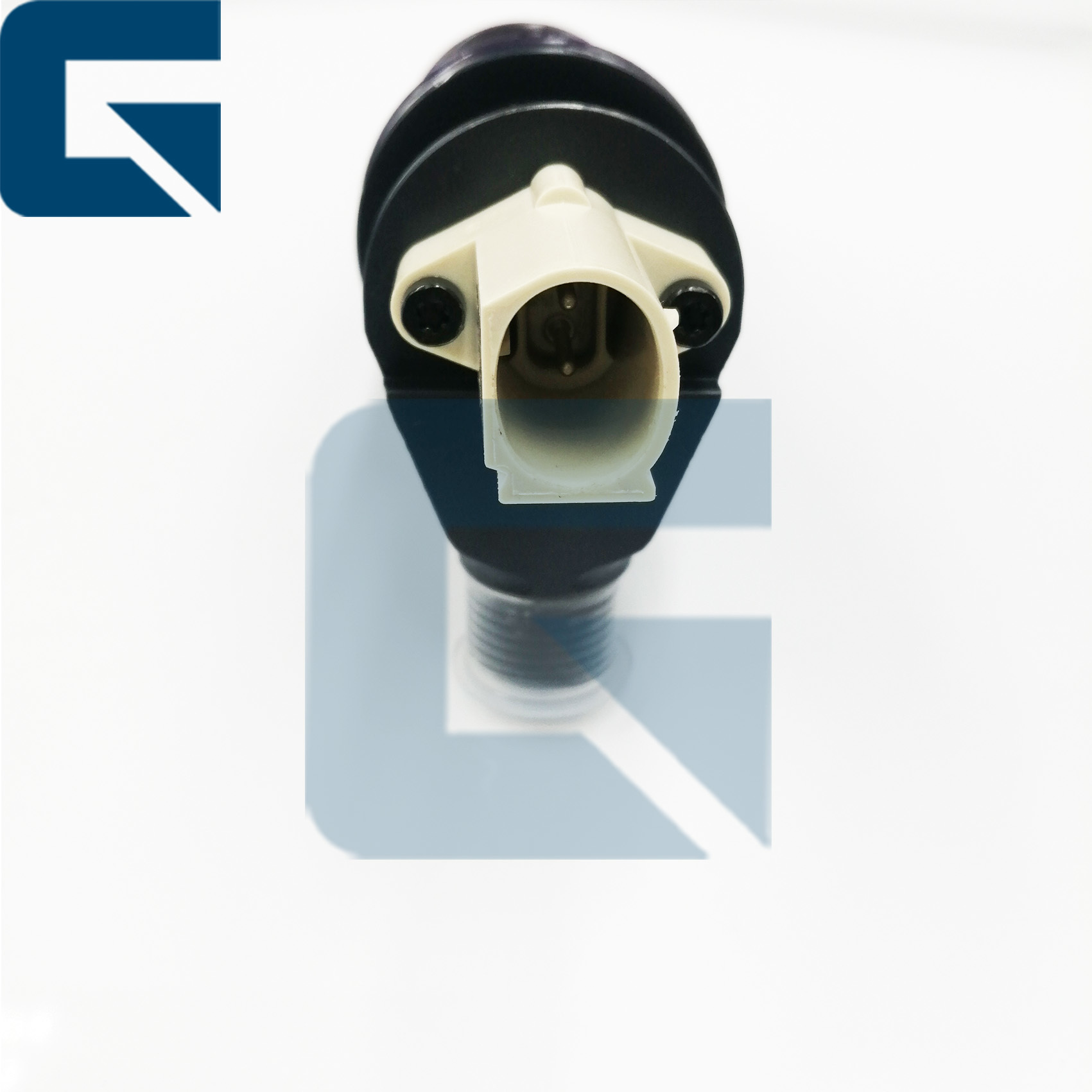

Product Photos & Testing
VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts 0 VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts 1 VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts 2 VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts 3
Related Products
VOE24290494 24290494 Diesel Fuel Injector for D13K Engine Parts 4
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions for proper injector installation.
Q2: What precautions should I take before installing VOE24290494 fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; and ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, please provide your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly
  • Visual Inspection: Check fuel injector nozzles for carbon buildup, blockage, or corrosion
Q6: How long will it take to receive my package after payment?
Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and backup rings. Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
  3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Note: Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in injector causing insufficient starting oil pressure Inspect injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
