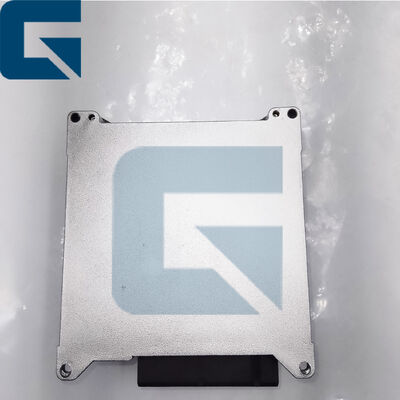

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator
VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator
기본 정보
원래 장소: 중국
브랜드 이름: Jiajue
모델 번호: EW160B EW180B
최소 주문 수량: 1PC
가격: $600/pc
포장 세부 사항: EW160B EW180B 굴삭기용 VOE14390248 컨트롤러 ECU 14390248은 고객 요구 사항에 따라 표준 수출 포장으로 포장됩니다.
배달 시간: 1-5 근무일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹,
공급 능력: 100pcs/월
최고의 가격 지금 연락
상세 정보
제품명: EW160B EW180B 굴삭기용 VOE14390248 컨트롤러 ECU 14390248 재료: 강철
원래 장소: 중국 광동 MOQ: 1
OEM: 지원하다
강조하다:

ECU controller for EW160B excavator

,

excavator ECU controller 14390248

,

EW180B excavator controller with warranty

제품 설명

VOE14390248 Controller ECU for EW160B/EW180B Excavators
High-quality 14390248 ECU controller specifically engineered for engine applications in EW160B and EW180B excavators. This precision component ensures optimal performance and reliability in demanding industrial environments.
Product Specifications
Product Name Controller ECU
Part Number 14390248
Brand Name JIAJUE
Condition New
Availability Rich Stock
Approximate Weight 3KG
Size (per unit) 30cm x 25cm x 10cm
Delivery Time Usually delivered within 1-3 days after payment
Product Images

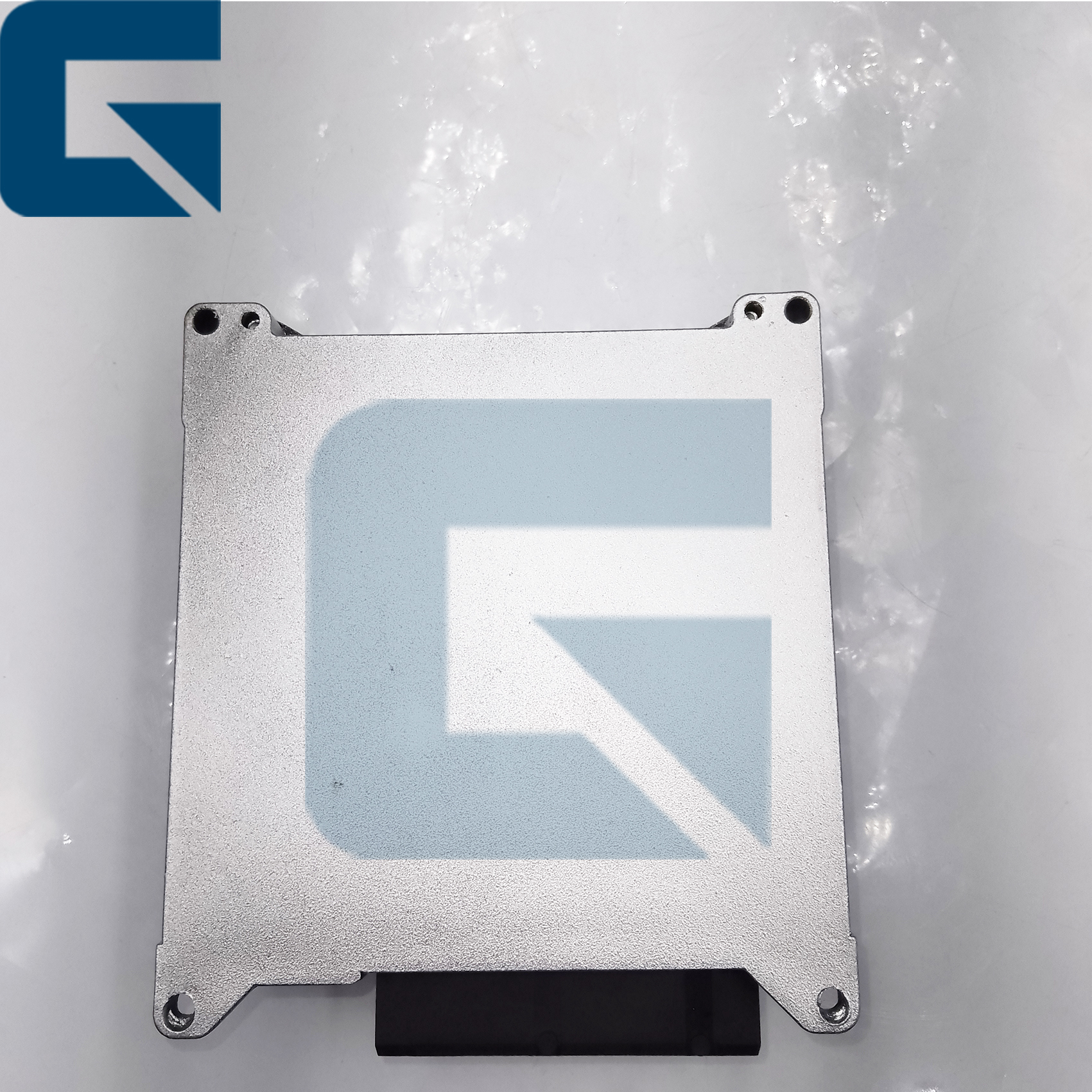

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator 0

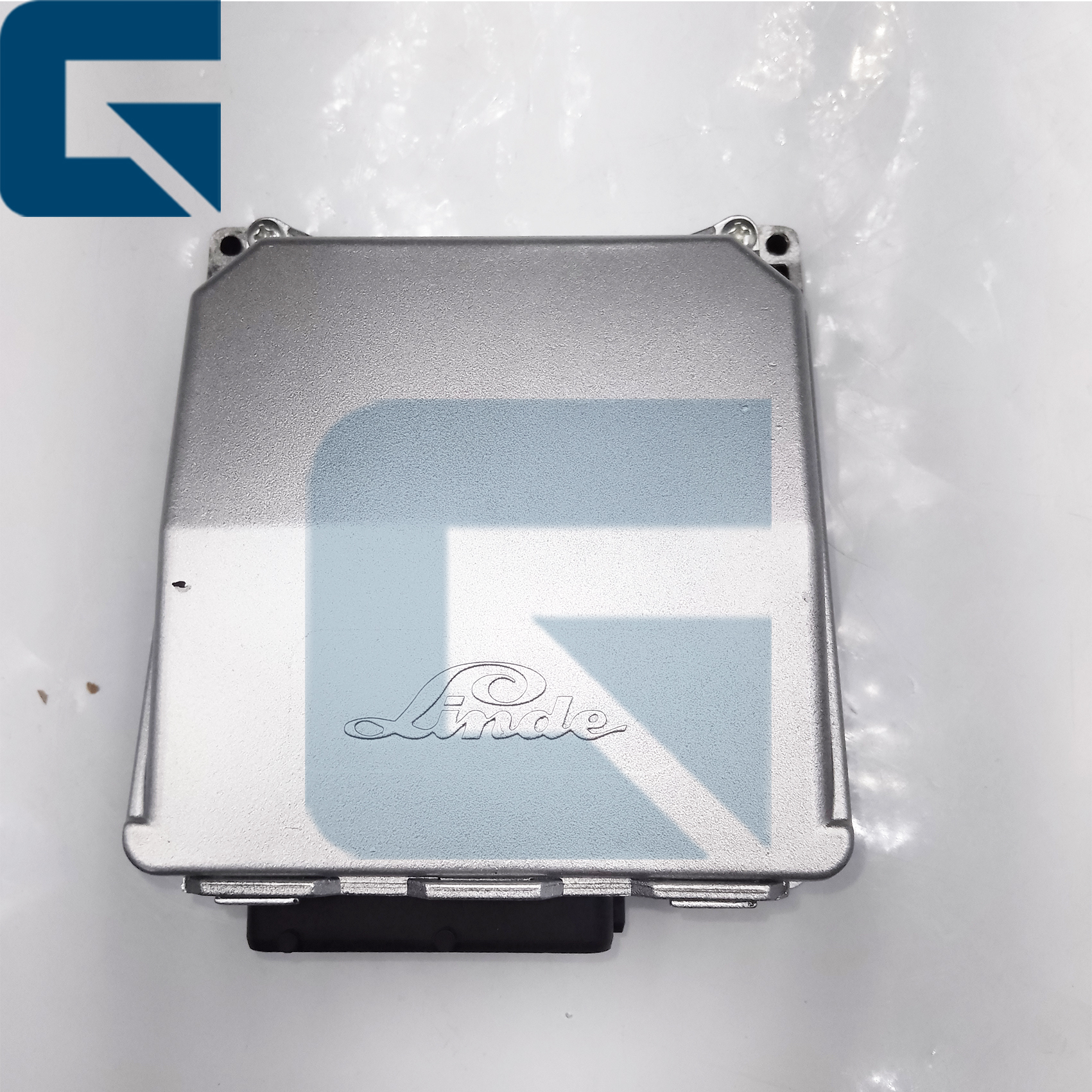

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator 1

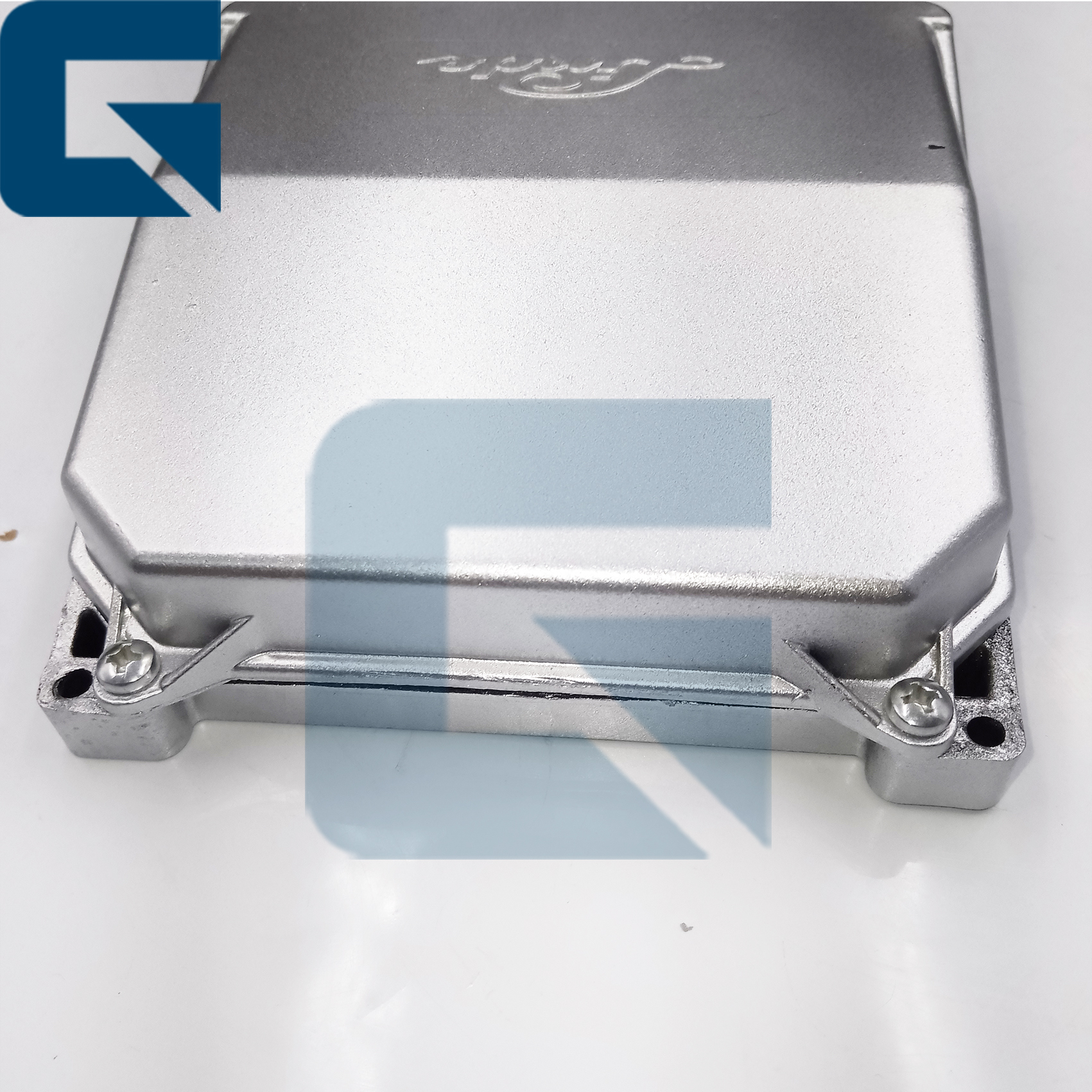

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator 2

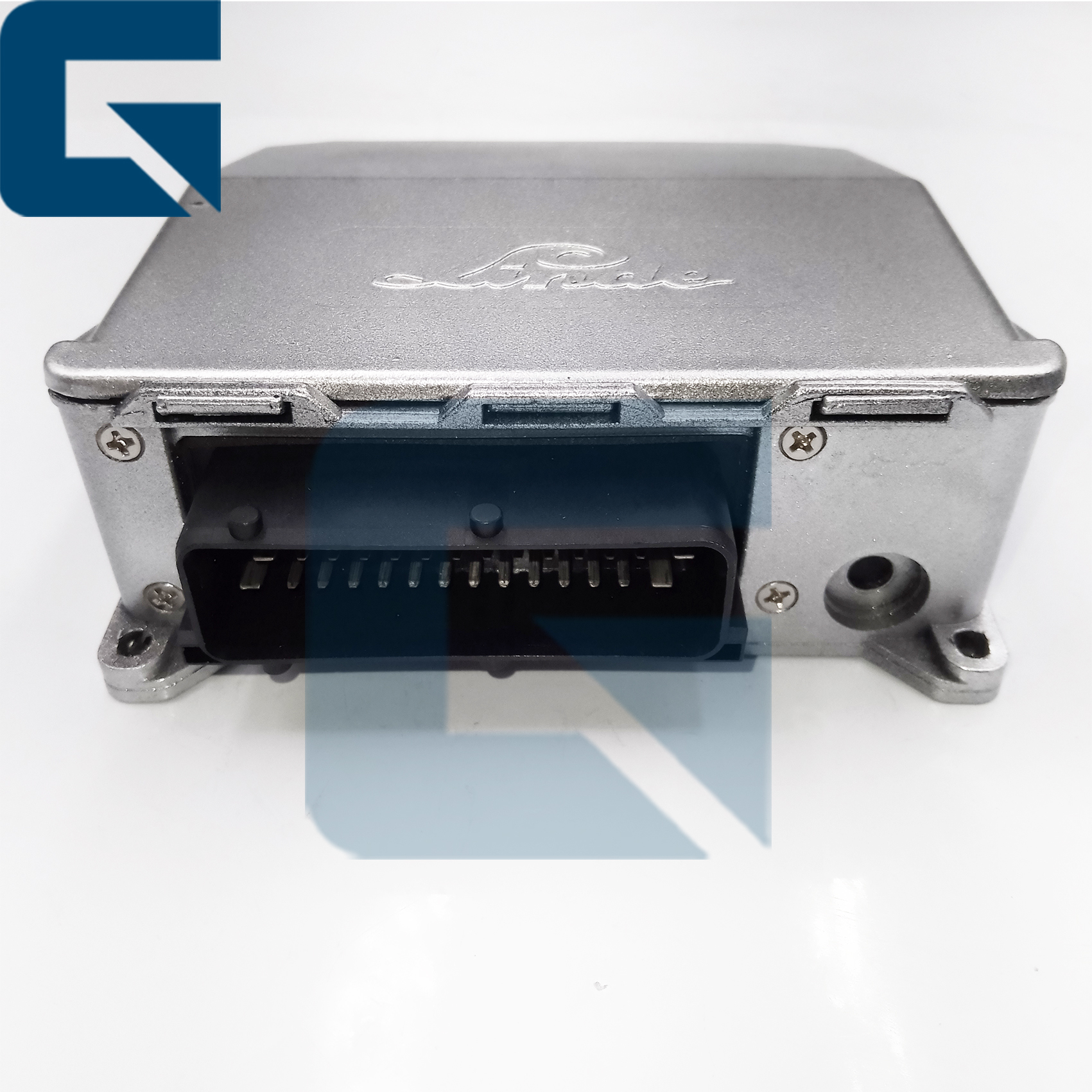

VOE14390248 Controller ECU 14390248 for EW160B EW180B Excavator 3
Frequently Asked Questions
Installation Time Requirements
  • Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
  • Programming & Testing: 30-60 minutes.
Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need an ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
ECM Fault Diagnosis
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Payment & Order Information
Payment Methods: T/T, L/C, PayPal, etc.
Stock Availability: Rich stock available.
Order Tracking: When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.
Step-by-Step Testing Guide
Important Note: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Diagnostic Checklist
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
