215-6209 2156209 Chassis Harness for 320C Excavator

기본 정보

원래 장소:	중국
브랜드 이름:	JIAJUE
모델 번호:	320C

최소 주문 수량:	1
가격:	Please send mail or WhatsApp
포장 세부 사항:	215-6209 2156209 320C 굴삭기용 섀시 하네스는 고객 요구 사항에 따라 표준 수출 포장으로 포장됩니다.
배달 시간:	1 근무일
지불 조건:	L/C, D/A, D/P, T/T, 서부 동맹,
공급 능력:	1000pcs/월

최고의 가격 지금 연락

상세 정보

부품 번호:

섀시 하니스

강조하다:

320C Excavator chassis harness

215-6209 excavator wiring harness

320C Excavator replacement harness

제품 설명

215-6209 Chassis Harness for 320C Excavator

Product Specifications

Product Name	Chassis Harness
Part Number	215-6209
Brand Name	JIAJUE
Model Compatibility	320C
Availability	Rich Stock
Delivery Time	Usually 1-3 days after payment
Approximate Weight	8KG
Size (per unit)	20cm x 15cm x 25cm
Delivery Methods	DHL, FedEx, TNT, UPS
Shipment	Dispatched within 24-48 hours
Payment Methods	TT, Western Union, Credit Card, PayPal

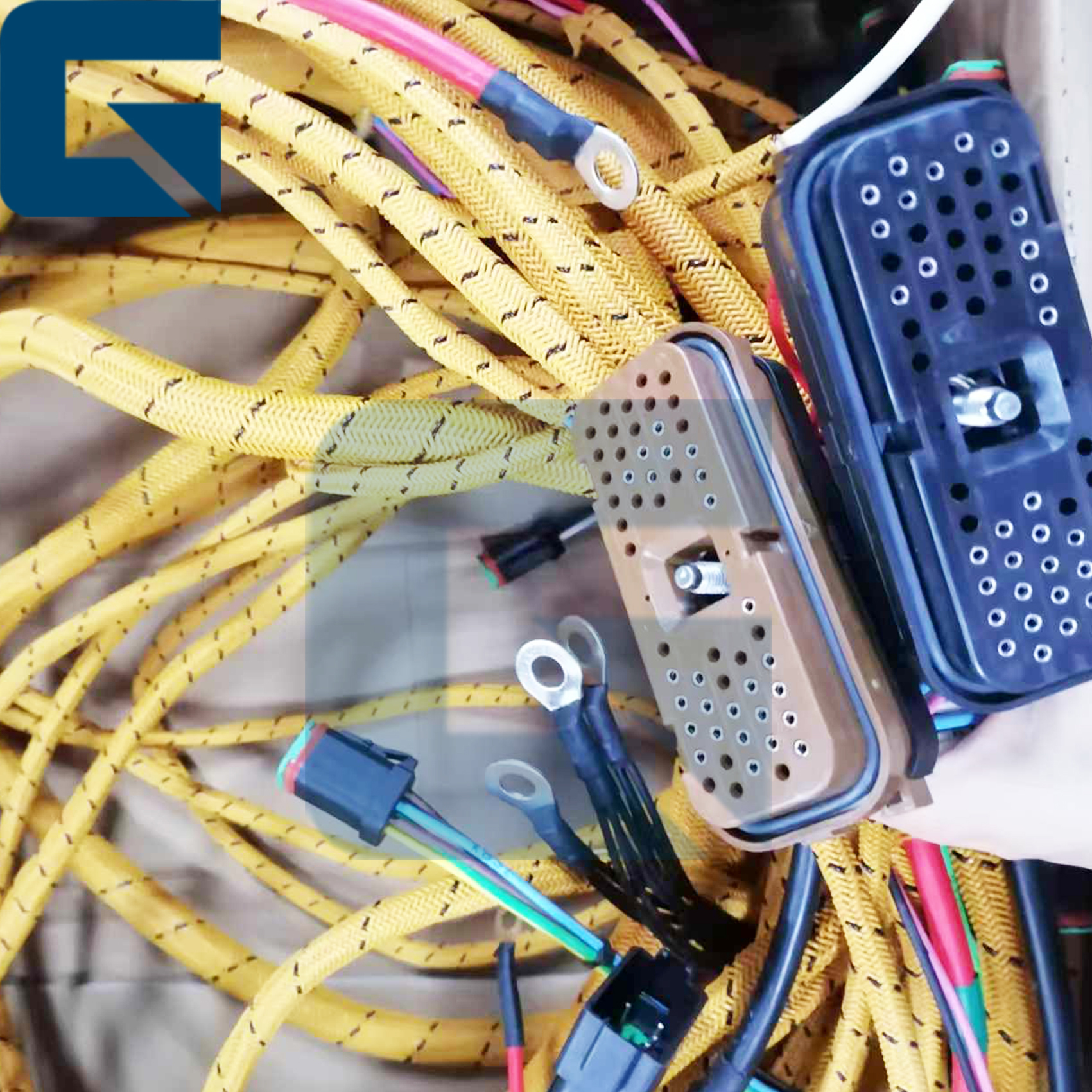

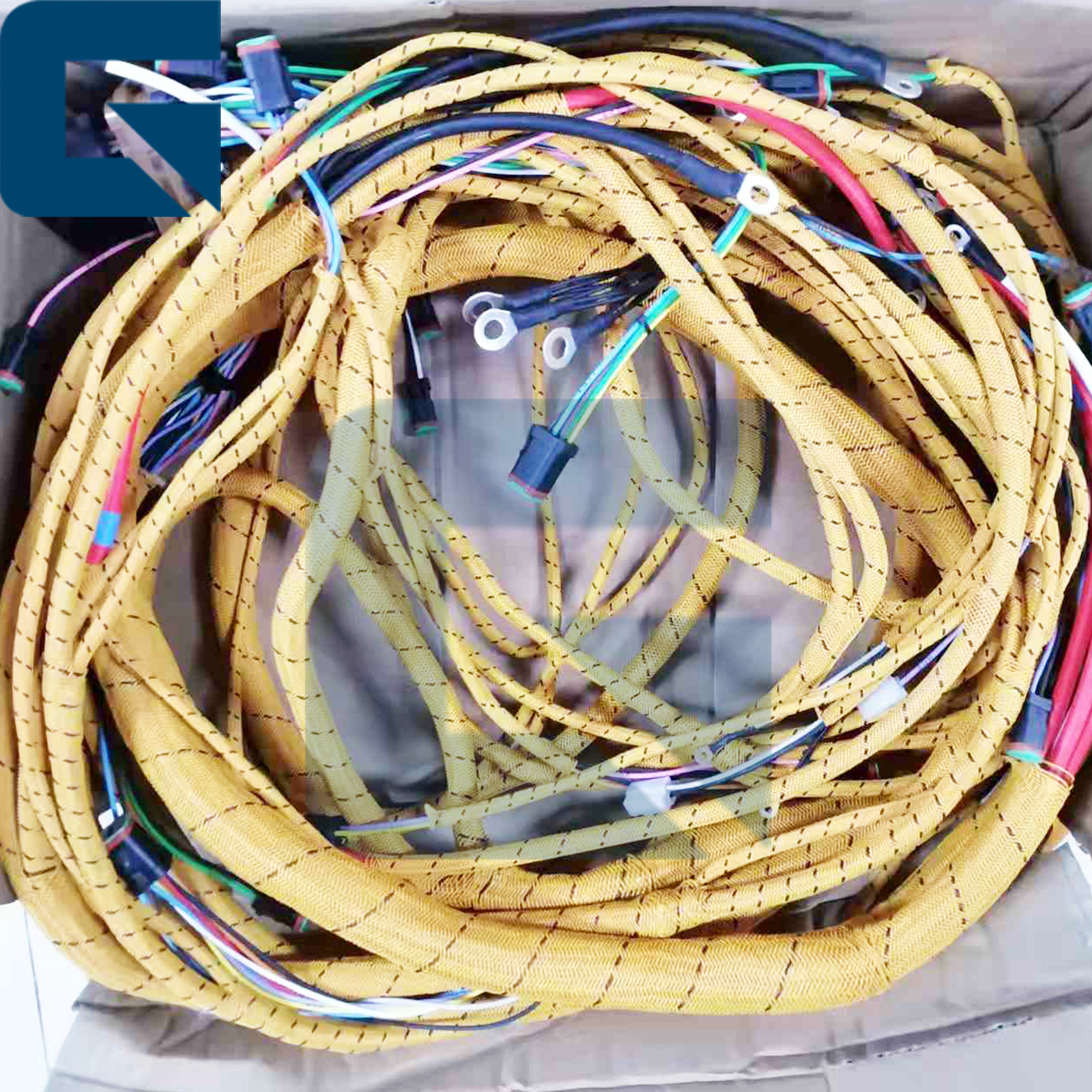

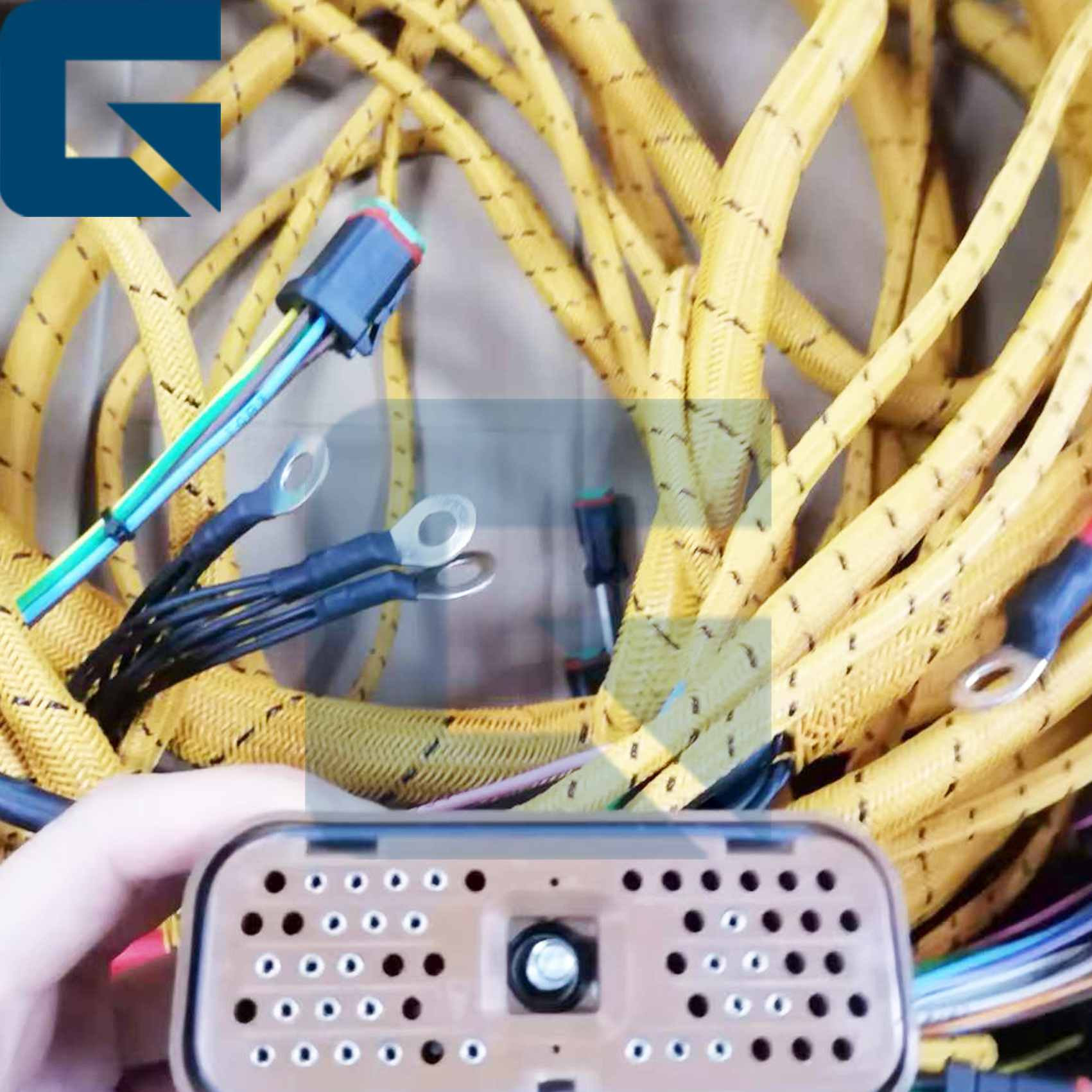

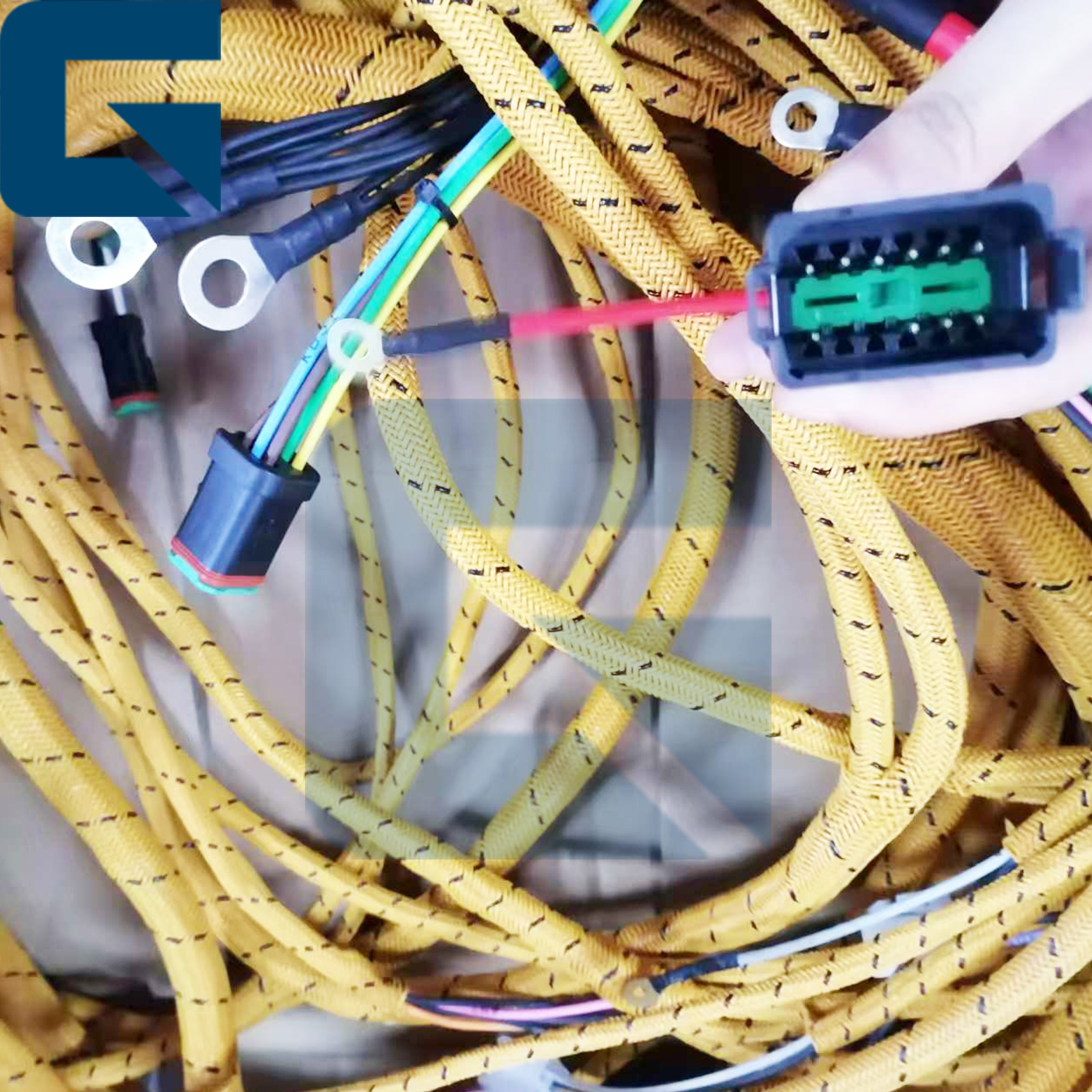

Product Photos & Testing

Related Products

Frequently Asked Questions

Installation Time

Installing a complete 215-6209 harness, under normal conditions and without additional faults, requires 4-6 hours by mechanics (2 people working together).

Damage Identification

E320D machine walking abnormality: drive motor solenoid not working, walking speed switching malfunction, fault codes appear or disappear when walking or shaking the wiring harness.

Compatibility Verification

For PC200-8 excavator compatibility, check:

Whether the circuit functions are consistent
Whether the number and arrangement of the plugs and pins are consistent
Whether the electrical voltage parameters are matched

Payment Methods

Our payment methods include T/T, L/C, PayPal, etc.

Stock Availability

Rich stock available.

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Connect each plug of the wire harness to the corresponding hole on the test bench
Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating that the function is normal

Quick Checklist for Buyers

Preparation	Requirement
Battery	Must be disconnected
Old Harness	Compare with the new one first
Pins/Plugs	Clean and straight
Routing	Smooth path, no sharp edges
Fastening	Secure but not over-tightened
